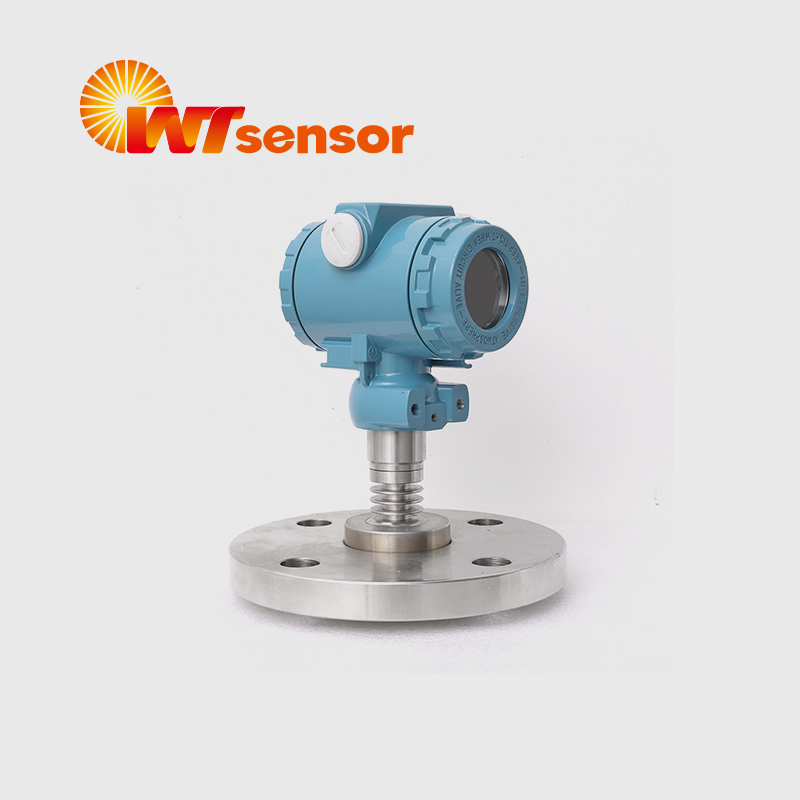

PCM308 Датчик давления для гидравлической промышленности

Performance parameters

Pressure range

-100kPa…0～100kPa…60MPa

Pressure reference

Gauge pressure | Absolute pressure

Supply

24V(typical) (9～32V)

24V(typical) (9～30V)

24V(typical) (15～30V)

Output signal

4 to   20mA

1 to 5V | 0 to 5V | 1 to 6V

0 to 10V | 1 to 10V

Accuracy

±0.5%F.S. (typical) | ±1%F.S. (max.)

Nonlinearity

≤±0.2%F.S. (Best Fit Straight   Line)

Hysteresis & repeatability

≤±0.1%F.S.

Zero temp. coefficient

±1.5%F.S. (-20   ºC-85 ºC)

Span temp. coefficient

±1.5%F.S. (-20 ºC-85 ºC)

Response time

Viscosity of liquid<100cSt

<4ms

gas

<35ms

Overpressure

1.5×FS (max.90MPa)

Burst pressure

2×FS   (max.120MPa)

Service life

>10×10⁶   pressure cycles

Ambient temp.

-40ºC - 85ºC

Medium temp.

-40ºC - 100ºC

Storage temp.

-50ºC - 85ºC

Compensated temp.

0ºC - 80ºC

EMC-interference

EN 61000-6-3

EMC-immunity

EN 61000-6-2

Insulation resistance

>200MΩ/250VDC

Power frequency test

SEN 361503

Vibration resistance

Sine   curve

15.9mm-pp, 5Hz～25Hz

IEC 60068-2-6

20g, 25Hz～2kHz

Random

7.5grms, 5Hz～1kHz

IEC 60068-2-64

Shock resistance

Shock:   500g/1ms

IEC 60068-2-27

Free   fall

IEC 60068-2-32

Protection

IP65

Material

Wetted part

ASTM: S31603(AISI 316 L)

Housing

Stainless steel 304

Electrical connection

PA6.6

Weight

Approximately 0.2kg
